Degradation Kinetics of Some Coordination Biopolymers of Transition Metal Complexes of Alginates: Influence of Geometrical Structure and Strength of Chelation on the Thermal Stability

Refat M Hassan1*, Hideo D Takagi2

1Department of Chemistry, Faculty of Science, Assiut University, Assiut, Egypt
 2Chemistry Department, School of Science, Research Center of Materials Science, Nagoya, Japan

*Corresponding author: Refat M Hassan, Department of Chemistry, Faculty of Science, Assiut University, Assiut 71516 Egypt.

Received: November 21, 2019
Published: December 18, 2019

ABSTRACT

Non isothermal  (TG) and (DTG)  thermal techniques have been applied for studying degradation  kinetics of some coordination biopolymers of transition metal complexes such as Mn(II)-, Co(II)-, Ni(II)-, Cu(II)- and Zn(II)-metal-ions coordinated with the carboxylate and hydroxyl functional groups of alginate  as a natural polymer.  Three stages of degradation for such complexes have been observed. The first one was corresponding to the dehydration of two coordinated water molecules, followed by degradation of the formed dehydrated derivatives in the two following stages, respectively. Metal oxalates were formed as intermediate fragments.  Sets of different models applied to compute the kinetic parameters of degradation. The kinetic results of degradation revealed that the stability was increased in the order Zn < Mn ≤ Co < Ni < Cu–alginates. A tentative degradation mechanism in terms of the complexes thermal stability, model structure, geometrical configuration and strength of chelation is discussed.

Keywords: Degradation, Transition Metals, Complexes, Kinetics, Thermal Stability.

INTRODUCTION

Alginate polysaccharide is a natural polymer containing β (1-4) linked D-mannuronic acid units and some L-gulurounic acid units in a linear-block copolymer structure [1-5].  Alginate possesses a high affinity for chelating with silver (I) and polyvalent metal ions particularly with the divalent ions [6-8].

The crosslinks have been existed through formation of partially ionic and partially coordinate bonds between the chelated metal ion and both the carboxylate and hydroxyl groups, respectively, of the alginate macromolecular chains of the guluronic blocks in order to form its corresponding coordination biopolymer metal-alginate gel complexes [9,10].

Although, the recognized high importance of those polymeric biomaterials in biotechnological industry through numerous studies of its physicochemical properties [11-18], a little attention was paid to studies of degradation kinetics from the thermal stability points of view.

In terms of the arguments mentioned above and our interest on the thermal decomposition studies of such coordination biopolymer complexes metal-alginates [19-21], we have prompted to undertake the cited work in an effort to gain some information on the influence of the thermal stability of these complexes on the performance efficiency in terms of the model structure, coordination geometry and strength of chelation points of view. Again, the results obtained will be compared with that reported previously for other coordination biopolymers complexes of divalent-metal alginates [19-21].

EXPERIMENTAL

MATERIALS

All materials used were of Analar quality (BDH). Samples of granule nature of such metal alginate complexes were prepared by replacement of the sodium counter ions in alginate (Na+) (Cica Reagent Chemical Co.) by Mn2+, Co2+, Ni2+, Cu2+ and Zn2+ metal ions. The process takes place by stepwise addition of alginate powder to solutions of metal ion electrolytes placed in glass conical flasks (ca. 0.5-1.0 M) whilst stirring the solutions vigorously to avoid any gelatinous precipitate formation, which swells with difficulty.  After completion of between the two exchangeable ions  (2-3 hrs), the formed granules of metal alginates were washed with deionized water several times, and then with doubly distilled water until the resultant washings became free from the surrounding metal ions [20,21]. The sample complexes were dried at 105oC under vacuum over anhydrous CaCl2 or P2O5 [20,21].

TECHNIQUES

Thermogravimetry (TG) and differential thermogravimetry (DTG) of metal alginate complexes were carried out using a Mettler TA 3000 thermal analyzer in static air. Three degrees 5, 10 and 20 K/min of heating rates were used.

A Pye Unicam SP 3100 spectrophotometer using the KBr disc technique (4000~200 cm-1) was used to record the IR spectra.

A Philips 1710 diffractometer, the patterns run with copper as a target and nickel as a filter (λ = 1.54187 Å) at 40kV and 30 mA was applied to record the X-ray diffraction patterns. The scanning speed was 3.6 K/min in the range 2θ = 2-60.

RESULTS AND DISCUSSION

Generally, the divalent metal ions from the electrolytes were replaced the Na+ counter ions of added alginate powder through ion exchange process. This ion exchange is inherently a stoichiometric process [11-13], even the two counter ions may different in either valences or mobilities [6]. The exchange processes can be represented by the following stoichiometric equation

                 2(Na-Alg)n  +    n M2+         =   (M-Alg2)n   +    n ( 2Na+)                                 (1)

                    Solid          Electrolyte         Solid complex    Electrolyte

Where M denotes Mn, Co, Ni, Cu or Zn metals.

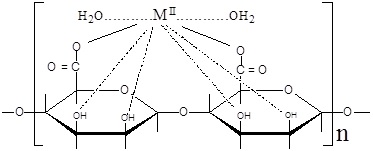

A kind of chelation occurs between the interdiffused divalent metal ions with both the carboxylate and hydroxyl functional groups of the alginate macromolecular chains. This chelation is not just simple, but partially ionic and partially coordinate bonds are formed between the metal ion and the carboxylate and hydroxyl groups, respectively, through sort of bridges.  Thus in turn, the chelation will lead to the formation of the corresponding coordination biopolymer complexes in an egg-carton like structure [4,5]. Hence, two configurations of the geometrical structures can be suggested in such chelation [22].  In the first geometry, the functional groups involved in chelation are belonging to the same chains. Hence, the symmetry plane of the gel complex involving the chelated metal ion is parallel with the plane of the alginate macromolecular chains and can be termed by the planar geometry or intra-molecular association. In the second type of geometry, the plane containing the metal ion is perpendicular to the plane of alginate macromolecular chains, i.e. the functional groups are related to different chains. Hence, the geometry is termed by the non-planar geometry and corresponds to the intermolecular association.  The priority of the two geometrical structures depends on the nature and valence of the metal ion. The two configurations are shown in (Scheme 1).

Intermolecular Association




Intramolecular Association



Figure 1 showed the FTIR spectra of the metal alginate complexes, whereas the vibrational assignments of the bands are listed in (Table 1). It is clear that bands of the asymmetric stretching vibrations of -OCO- group (υas) are shifted from 1600 cm-1 for alginate to more or less frequencies. On the other hand, the bands of the symmetric stretching vibrations of -OCO- group (υs) were shifted from 1400 cm-1 for alginate to higher frequencies, respectively. This result indicates that the functional groups are participating into the coordination process. Again, the enhancement of the υOH band to lower frequencies is larger and broader than that of alginate for all metal alginate complexes which may indicate that the OH groups take part in chelation. Again, these complexes were found to be amorphous in nature.

Table 1: Infrared frequencies (cm-1) for sodium alginate and cross-linked metal alginate complexes.

Compound

υs OCO

υas

υOH

υM-O

Ref.

Na-alginate

1600

1400

3500

850

20

Co(II)- alginate

1579

1415

3219

816

This work

Ni(II)- alginate

1595

1417

3450

814

This work

Cu(II)-alginate

1604

1406

3325

817

This work

Zn(II)-alginate

1602

1411

3280

816

This work

Mn(II)-alginate

1616

1425

3480

820

This work


Three stages of weight loss (TG) associated with endo- and exothermic peaks (DTA), respectively were clarified from the TG and DTA thermograms thermal decomposition of sodium alginate.  The first one of weight loss in the TG curves was attributed to the evolution of coordinated water molecules. The maximum decomposition temperature of the first endothermic and second exothermic peaks (DTA) was found to be nearly similar for all complexes. This means that the decomposition behavior of these complexes proceeds through similar manner [19,20].



                               Cu (II)                                                                Co (II)                                                                  Mn (II)



                                       Ni (II)                                                                                         Zn (II)

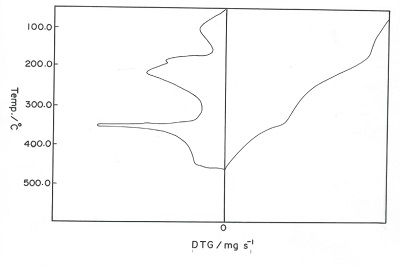

Figure 2: TG and DTG thermograms of the cited cross-linked metal alginate complexes

Figure 2 showed the TG and DTG thermograms of those complexes at heating rate of 20K/min.  The TG thermograms showed three decomposition steps for the complexes. The first step corresponds to the dehydration of two coordinated water molecules, while the second and third steps correspond to the decomposition of those dehydrated complexes formed in the first stage. The weight loss and the corresponding temperatures are summarized in Table 2. The weight loss observed was found to be in good agreement with the values that calculated theoretically for the products formed. Whereas, the DTG curves exhibit a series of thermal changes associated with the TG curves. The low temperature corresponds to the elimination of two coordinated molecules in one step seems to be an indication of its weekly coordination in their metal-alginate complexes [23].  The endothermic peaks were explained by the partial degradation and pyrolysis of these complexes to the intermediate compounds, whereas the exothermic peaks were interpreted by the decomposition of the intermediate formed to the corresponding metal oxide [20].

Table 2: The peak temperature (Tp) and the weight loss accompanying the stage of decomposition for cross-linked metal alginate complexes (heating rate = 20K/min)

Complex

Stage

TGoC

Weight

loss %

Tp oC

Formula

Ti

Tf

Tm

Mn(II)-alginate

1st

2nd

3rd

56

170

340

170

340

557

108

205

425

9.2

45.2

37.4



209



C12H14O11Mn.2H2O

Co(II)- alginate

1st

2nd

3rd

56

163

305

163

305

466

114

206

326

9.3

40.9

37.3



215



C12H14O11Co.2H2O

Ni(II)- alginate

1st

2nd

3rd

56

172

302

172

302

503

121

214

317

9.6

41.3

34.9



218



C12H14O11Ni.2H2O

Cu(II)-alginate

1st

2nd

3rd

56

165

258

165

258

397

105

220

314

9.7

38.3

40.1



223



C12H14O11Cu.2H2O

Zn(II)-alginate

1st

2nd

3rd

54

159

315

159

310

565

112

208

356

9.9

39.5

36.8



211



C12H14O11Zn.2H2O


A suitable reaction mechanism in good consistent with the thermal decomposition may be suggested on the basis of the above aspects and our experimental observations. It involves the dehydration of the water molecules in the first stage,

(2)

followed by the formation of metal oxalate as intermediates in the second

(3)

Then, the oxalate intermediates formed are decomposed to give rise to the metal oxides as final decomposition product in the third step as follows,

(4)

The kinetics of their thermal decomposition depends on the model structure of the formed complex, nature of metal ion, strength of chelation and orientation of the macromolecular chains of alginate toward the chelated metal ion since these metal-alginate complexes have a rigid network of linear block structures. Sestak and Berggen [24] and Satava [25]  have discussed how to evaluation of the reaction mechanism by non-isothermal methods. This method is based on the assumption that non-isothermal reactions proceed in infinitesimal time intervals and, hence, the rates can be expressed by the Arrhenius type equation

(5)

where Z is the frequency factor, t is the time, α is the decomposition fraction, and F(α) depends on the mechanism of the process.

A theoretical method for the reduced time was suggested by Sharp and co-workers [26] in order to distinguish between the different methods where the time scales in the kinetic equation is

(6)

where  g(α)  is the integrated form of  F(α) which altered so that

(7)

Here t0.5 is the time for 50% decomposition and A is a constant depending on the form of g(α)

The determined t0.5 which corresponds to α = 0.5 (using the experimental data) was used to convert the data to curves of the form α - (t / t0.5) plots. Linear regression analysis was applied to analyze the non-isothermal data according to various kinetic model functions [24].  Table 3 summarized the best fitting models of the hydration processes for the investigated samples.

Samples of 10 mg were used at the three heating rates 5,10 and 20 K/min in order to obtain reliable kinetic parameters. However, different methods may be used to calculate the kinetic parameters. The following equation was applied in the present study

(8)

where Φ is the heating rate, E  is the activation energy, T  is the absolute temperature, Tp is the peak temperature of decomposition and R  is the gas constant.  Equation (8) was based on a proposed reaction mechanism given by Satava together with Coot’s-Redfern equation [27].   The g(α) assumes different forms to describe the rate process depending on the model applied. Plots of log g(α)/T2 against 1/T should be linear as was observed experimentally from which slopes and intercepts, the activation energy and frequency factor can be determined. These values were calculated by using the method of least- squares and are summarized in Table 3.

Again, the entropy of activation can be evaluated from the following relationship [27]

(9)

where kB   is the Boltzmann’s constant and  h   is the Planck’s constant. The values of entropies of activation are listed in Table 3. The observed negative values of entropies of activation with respect to all cited complexes with respect to the initial dehydration step may indicate that the activated complexes formed during the dehydration processes are more ordered than that of the reactants, in good agreement with that reported earlier for some other divalent metal alginate complexes [20].

The magnitude of the activation energies and the maximum temperatures of decomposition shown in (Table 2 & 3) may be indicative to the stability of these complexes. The stability was found to increase in the order Zn < Mn ≤ Co < Ni < Cu–alginates, in good agreement with their magnitudes of M-O bond energies [28] and with the same order of magnitude reported elsewhere [16,18,29-31]. The high stability of cross-linked copper-alginate complex may be attributed to its distorted octahedral structure and high degree of orientation [17].

Table 3: Kinetic parameters for non-isothermal decomposition of cross-linked metal alginate complexes.

Complex

Heating

rate

K/min

Kinetic model

E,kJmol-1

       ∆S,JKmol-1

Log Z,

                                                             Stages

1st

2nd

3rd

1st

2nd

3rd

1st

2nd

3rd

1st

2nd

3rd

n(II)-alginate

5

10

20

F1

F1

F1

A3

A3

A3

R3

F1

R3

95.4

102.5

116.7

165.4

178.2

200.1

230.4

245.5

299.1

-45.4

-39.9

-38.8

34.7

43.8

17.6

64.3

57.9

72.5

10.5

10.8

10.9

13.0

13.7

13.9

15.5

16.2

16.8

o(II)- alginate

5

10

20

F1

F1

F1

A3

A3

A3

A3

A3

A3

100.1

80.4

120.1

200.8

212.1

180.7

305.8

290.7

240.5

-93.6

-86.5

-81.4

19.9

73.6

14.7

95.56

89.6

37.2

8.0

8.4

8.7

14.4

14.9

13.8

18.1

17.8

15.0

Ni(II)- alginate

5

10

20

A2

A2

A2

A3

A3

A3

A3

---

A3

99.8

116.4

105.6

207.6

215.1

224.3

312.1

----

316.4

-66.6

-45.9

-72.1

25.1

49.2

23.1

98.0

----

81.0

9.4

10.5

9.1

14.3

13.5

14.2

18.2

----

17.3

Cu(II)-alginate

5

10

20

A3

A3

A3

R3

R3

R3

---

---

---

168.5

199.7

180.5

220.2

232.5

230.6

---

---

---

-37.4

-22.8

-12.9

25.4

47.9

51.0

---

---

---

11.04

11.8

12.3

14.3

15.2

15.7

---

---

---

Zn(II)-alginate

5

10

20

A3

A3

R3

R3

R3

F1

R3

R3

R3

80.6

76.9

100.4

150.1

160.3

140.4

310.1

320.4

290.1

-83.0

-110.

-34.9

20.7

34.1

18.6

94.4

105.3

56.7

8.5

7.1

11.1

14.8

14.8

12.0

18.1

18.6

16.1



The influence of heating rates on the thermal decomposition (5,10 and 20oC ) was examined. The peak positions were found to be shifted with the increase in temperature. The observed linearity between log Z values and E values indicates the demonstration of the kinetic compensation effect.
